Products

LINK10 GEN2-PLUS

  • Equipped with a 1T powerful processor
  • Supports 250K/500K CAN and SocketCAN bus
  • Supports 4G/5G and ensures communication quality
  • Supports CF-Comm, making software development easy
  • Shares a 26PIN interface with the LINK10 GEN2-PLUS for seamless upgrade
  • Supports CF ISOBUS VT
  • Supports both Android and Linux OS

LINK10 GEN2-PLUS

  • Equipped with a 1T powerful processor
  • Supports 250K/500K CAN and SocketCAN bus
  • Supports 4G/5G and ensures communication quality
  • Supports CF-Comm, making software development easy
  • Shares a 26PIN interface with the LINK10 GEN2-PLUS for seamless upgrade
  • Supports CF ISOBUS VT
  • Supports both Android and Linux OS

HIGH LIGHT

Can-Bus

1T Computing Power

Equipped with a 1T powerful processor

High Brightness Screen

CAN SocketCAN

Supports 250K/500K CAN and SocketCAN bus (J1939, CANopen, ISO15765)

5G Communication

Supports 4G/5G and ensures communication quality

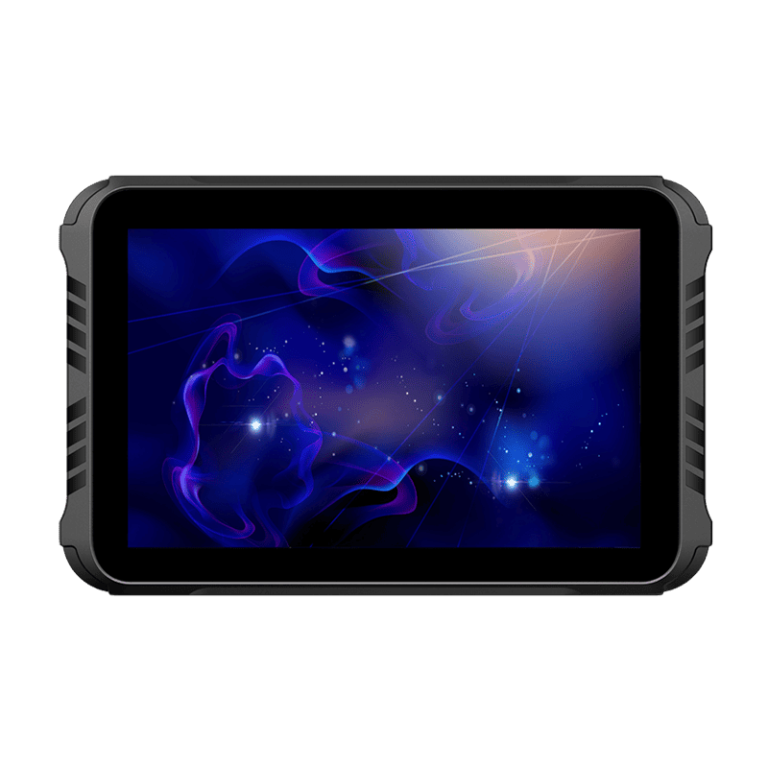

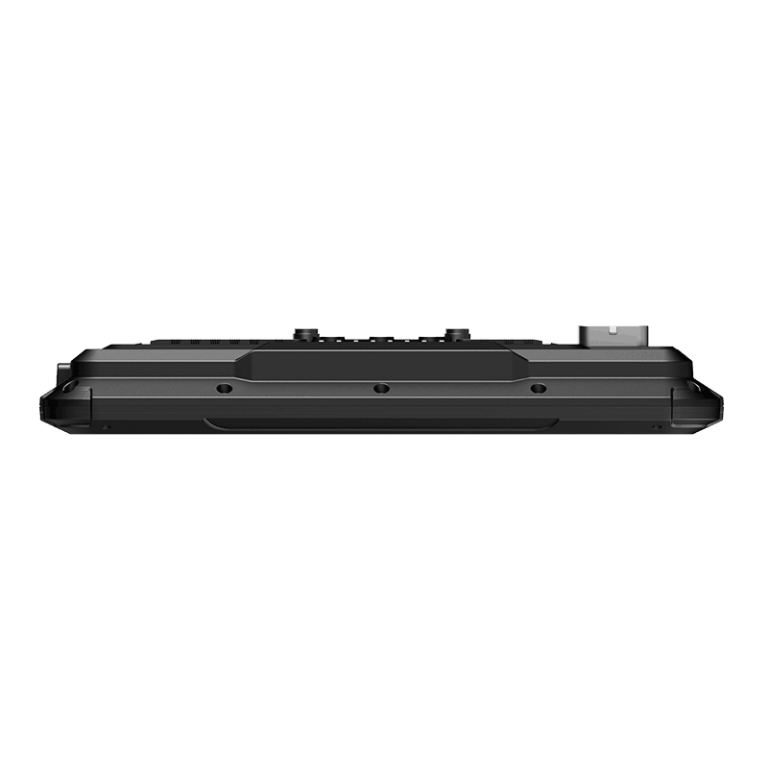

How The LINK10 GEN2-PLUS LOOK LIKE

Unmatched Processing Power:

Empowered by a robust 1T powerful processor, our vehicle-mounted computer ensures unparalleled performance, making it a reliable cornerstone for your industrial applications.

Versatile Connectivity:

Seamlessly integrate with 250K/500K CAN and SocketCAN bus protocols, providing versatile connectivity for efficient communication within your industrial systems.

Specifications

System CPU Quad-Core Cortex-A55, 2.0GHz
GPU ARM G52 2EE
OpenGL ES1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
High-Performance 2D Acceleration
1T Computing Power (0.8T NPU)Android 11.0

Linux Kernel 5.10,
2GB RAM LPDDR4, Up to 8GB
16GB ROM EMMC, Up to 128GB
Display 10.1″ Capacitive 5-Point Touch Control Display
Brightness: 750 cd/m2
Resolution: 1280 * 800px
Communication MIC*1
Build-in Speaker*1
Support Eexternal Speakers
100Mbps Ethernet*1
Optinal LTE 4G/5G
WIFI 802.11b/g/n,2.4G
Bluetooth 4.2
MXT906B & UM980 & P20E,Optional UM982
Radio Communication or Harxon1018D
Support ISOBUS VT
 I/O
Interface
Up to CAN*4
RS232*2, RS485*1
Up to ADC_In Detection*4 (12V Max Input)
Up to DC_Output 12V*5
Up to IO_Input*5
AHD Camera up to 1080P*2+1080P*4 or
720*4+1080*4
USB3.0*1
Rugged
Feature
Protection Level: IP65
Vibration: MIL-STD-810
Road Vehicle Standard: ISO16750
Operation Temperature: -30℃~ +70℃
Operation Humidity: 0% ~ 90%RH
Storage Temperature: -40℃~ +85℃
Salt Spray: 48 Hours of Salt Spray Test
Connector 26PIN Connector*1
GX12Circular Connector*4 (Optional)
SMA Connector*1 for 4G/ FM Radio (Optional)
TNC Connector*2 for GNSS (Optional)
Mechanical
Spec

Dimensions (W*H*D): 281*181*37.5mm
Weight: 1.5kg
Buttons 2 Function Buttons + ON/OFF Button Button
Installation Easy Installation with RAM or Similar Mounts for
Vehicles, Farm Equipment & Machinery
Customize Support

See How We Save Time And Improve Efficiency

Practical application project operation

Our vehicle-mounted computer is equipped with CP-Comm Modular Bus Architecture, ensuring seamless communication and interoperability between various components.

CF AVM 360° surround image Tech

CF AVM 360° surround image technology addresses several critical challenges in various industries

Driver Monitoring System (DMS)

Integrating CFDEVICE’s Vehicle Computer with a Driver Monitoring System (DMS) offers a comprehensive solution to enhance safety, efficiency, and compliance in various industries reliant on fleet operations.

See How We Save Time And Improve Efficiency

Our vehicle-mounted computer is equipped with CP-Comm Modular Bus Architecture, ensuring seamless communication and interoperability between various components.

Our vehicle-mounted computer is equipped with CP-Comm Modular Bus Architecture, ensuring seamless communication and interoperability between various components.

CF AVM 360° surround image technology addresses several critical challenges in various industries

Integrating CFDEVICE’s Vehicle Computer with a Driver Monitoring System (DMS) offers a comprehensive solution to enhance safety, efficiency, and compliance in various industries reliant on fleet operations.

Solution Of CFDEVICE

Advanced Thermal Solutions

In industrial computing where reliability and durability are critical, onboard computers are the backbone of modern operations.

Learn More
Anti-Glare Display Solutions

Vehicle Mount Computers are crucial in enhancing efficiency and productivity in various industries such as logistics, warehousing, manufacturing, and transportation.

Learn More
Electromagnetic Compatibility (EMC) Solution

Electromagnetic Compatibility (EMC) is crucial in Vehicle Mount Computers due to their operational environment.

Learn More
Sunlight Readable Solution

In an era where technology seamlessly integrates into our daily tasks, Vehicle Mount Computers have become indispensable tools in various outdoor and industrial settings.

Learn More
Wide Input Voltage solution

In the current industrial and vehicle environments, the challenge and diversity of power input requirements are common issues.

Learn More
Wide Temperature Solution

Vehicle Mount Computers are often deployed in harsh and extreme environments, where they are subjected to both high and low temperatures.

Learn More

Solution Of CFDEVICE

Advanced Thermal Solutions

In industrial computing where reliability and durability are critical, onboard computers are the backbone of modern operations.

Learn More
Anti-Glare Display Solutions

Vehicle Mount Computers are crucial in enhancing efficiency and productivity in various industries such as logistics, warehousing, manufacturing, and transportation.

Learn More
Electromagnetic Compatibility (EMC) Solution

Electromagnetic Compatibility (EMC) is crucial in Vehicle Mount Computers due to their operational environment.

Learn More
Sunlight Readable Solution

In an era where technology seamlessly integrates into our daily tasks, Vehicle Mount Computers have become indispensable tools in various outdoor and industrial settings.

Learn More
Wide Input Voltage solution

In the current industrial and vehicle environments, the challenge and diversity of power input requirements are common issues.

Learn More
Wide Temperature Solution

Vehicle Mount Computers are often deployed in harsh and extreme environments, where they are subjected to both high and low temperatures.

Learn More

About Us

CFDEVICE specializes in developing rugged vehicle-mounted tablets and control boxes, equipped with Android/Linux dual systems, IP65/IP67 protection, 4G/5G, CAN/CAN FD/SocketCAN, serial communication, vehicle-mounted gigabit Ethernet, 536V/936V wide voltage input, and more. We also provide independent software products like CF AVM 360, CF DMS, CF ISOBUS VT, CF MDM, enhancing off-road vehicle sensing, connectivity, and offering comprehensive features such as equipment management, development guidance, OTA updates, and remote control.

2017
Year Founded
120
Countries and Regions
21 Million
Households
2,206
Authorized Patents⁵
Default Title
Default Title
Default Title
Default Title
Default Title
Default Title
Default Title
Default Title
Default Title
Default Title

About Us

Improve Your Efficiency

Subscribe to get the latest updates, Price list, or more.

Subscribe Our Chanal

About Us

Improve Your Efficiency

Subscribe to get the latest updates, Price list, or more.

Subscribe Our Chanal

Frequently Asked Questions

Find answers to the questions you may have

An agriculture computer is a specialized computing device designed for use in agricultural environments. It offers functionality tailored for tasks such as crop monitoring, precision farming, data analysis, equipment control, and farm management.

Agriculture computers are used for various applications in farming and agriculture, including crop monitoring, soil analysis, irrigation management, weather tracking, pest control, livestock monitoring, machinery control, and farm planning.

When choosing an agriculture computer, consider factors such as ruggedness, environmental resistance, connectivity options, GPS capabilities, sensor integration, software compatibility, data analysis tools, and customization options to meet the specific needs of your farm operation.

Agriculture computers enable farmers to collect and analyze data, monitor crop conditions, optimize resource usage, automate tasks, and make informed decisions to improve productivity, efficiency, and yield while reducing costs and environmental impact.

Yes, agriculture computers are commonly used for precision farming applications, such as soil mapping, variable rate fertilization, precision planting, automated irrigation, crop scouting, and yield monitoring, to optimize inputs and maximize crop yields.

Agriculture computers may run various operating systems, including Windows, Linux, or specialized agricultural software platforms tailored for farm management, monitoring, and control applications.

Yes, agriculture computers are designed to withstand outdoor environments commonly encountered in farming and agriculture. They are ruggedized, waterproof, dustproof, and resistant to temperature extremes, moisture, and mechanical shocks.

CF AVM 360° Surround Image Technology provides a complete view of a vehicle’s surroundings, enhancing safety, maneuverability, and parking assistance. It reduces accidents, damage costs, and increases driver confidence, making parking in tight spaces easier and more convenient. It’s adaptable to various vehicles and integrates well with existing safety systems like ADAS.
