Products

TANK V2

  • Supports 1 TOPS (NPU 0.8T)
  • Supports Android 11.0 & Linux 5.10 OS
  • Supports 5G Communication
  • Supports Gigabit Ethernet
  • Supports CANbus*4 (CAN FD*2)
  • Supports 0-5V Analog Detection
  • IP66 Protection Level

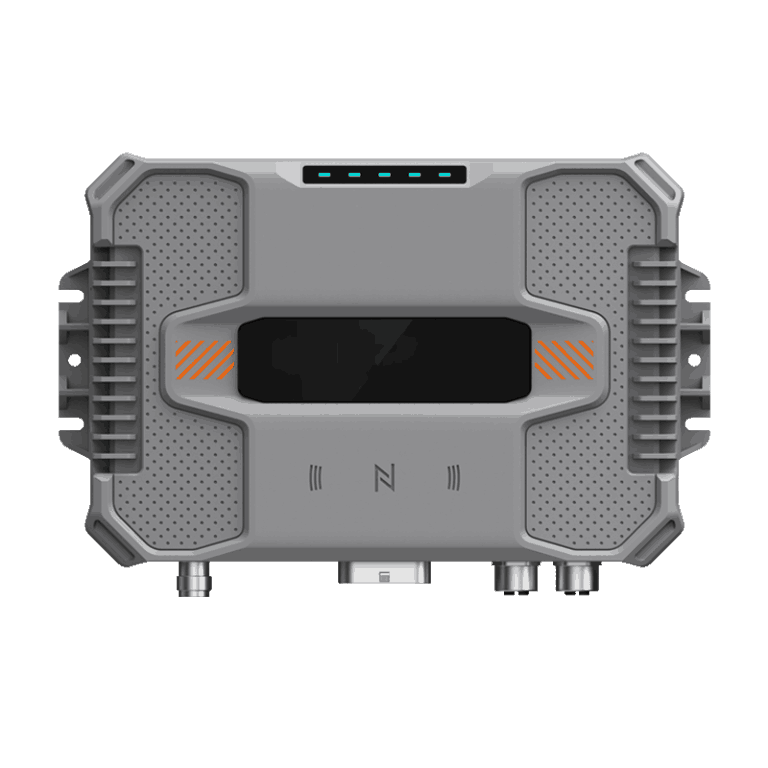

TANK V2

  • Supports 1 TOPS (NPU 0.8T)
  • Supports Android 11.0 & Linux 5.10 OS
  • Supports 5G Communication
  • Supports Gigabit Ethernet
  • Supports CANbus*4 (CAN FD*2)
  • Supports 0-5V Analog Detection
  • IP66 Protection Level

HIGH LIGHT

Can-Bus

1T Computing Power

Supports 1 Tops (NPU 0.8 T)

5G

Supports 5G Communication

High Brightness Screen

CAN CAN FD

Supports CANBus*4 (CAN FD*2)

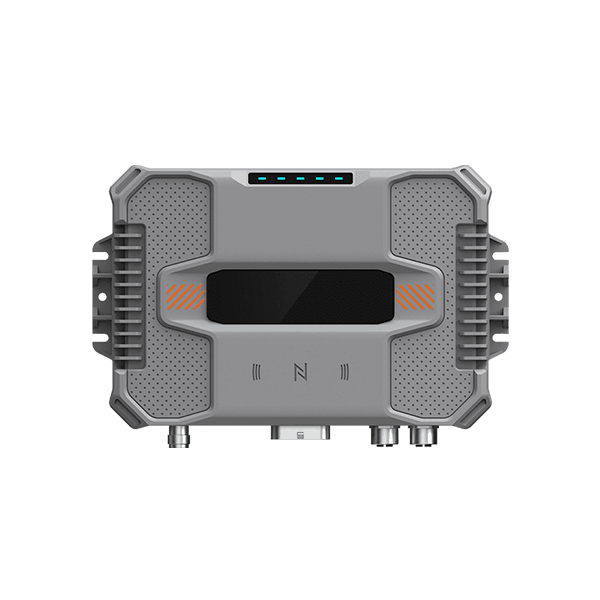

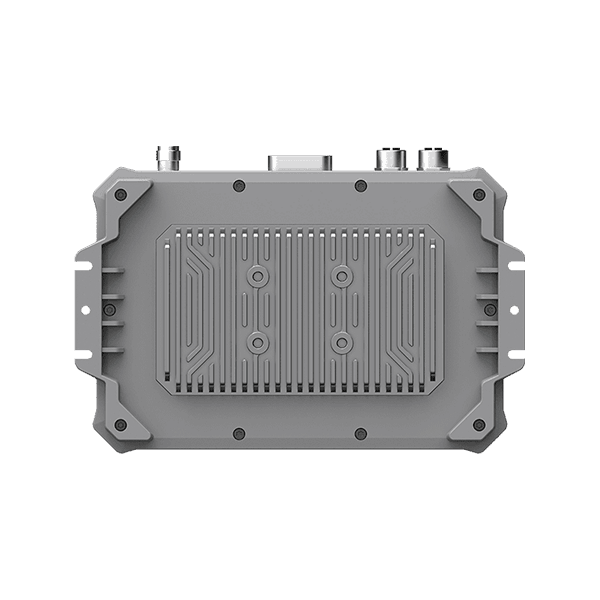

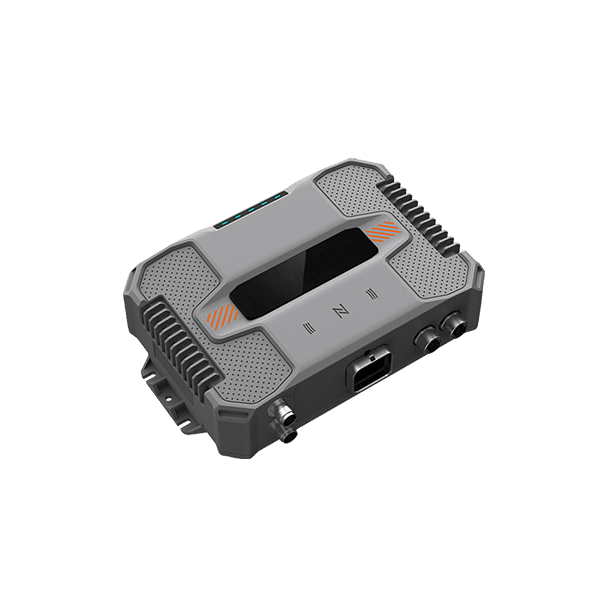

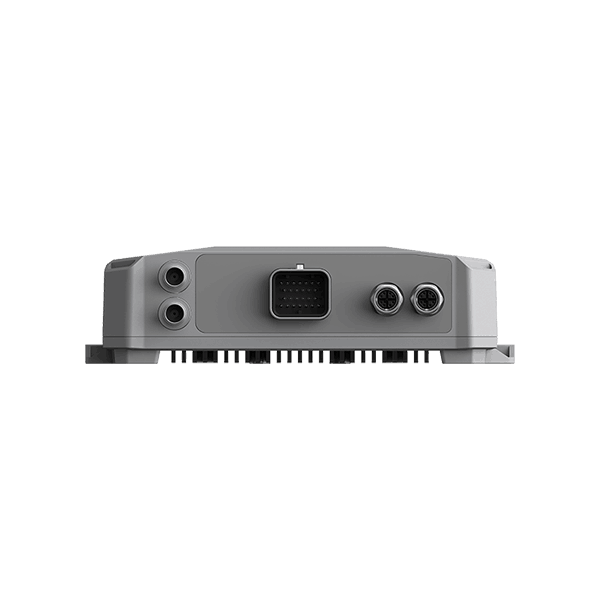

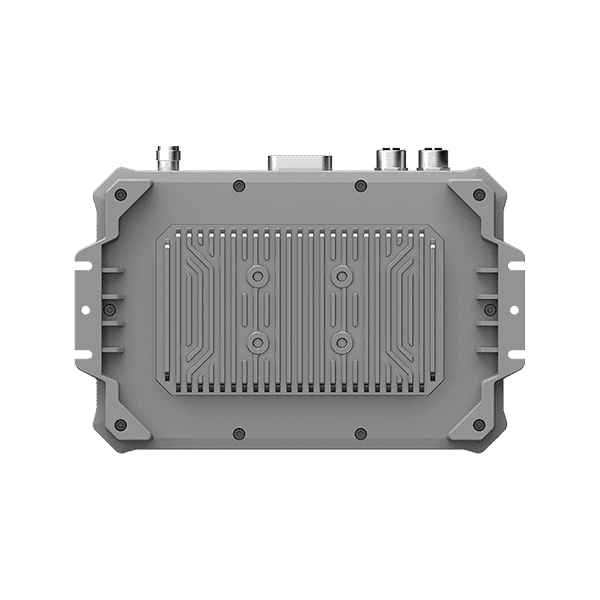

How The TANK V2 LOOK LIKE

2.4GHz/5.8GHz WiFi, IEEE 802.11 a/b/

g/n/ac, Supports WiFi Shared Hotspot

BT2.1+EDR/3.0/4.1LE/4.2BLE

5G SA/NSA,4G/LTE (Free expansion)

& (Internal antenna)

GNSS (GPS/BDS/GLONASS),

Optional Centi-meter Level GNSS OEM Board,

Optional Interial Navigation Module

NFC(Optional)

External MIC (Optional)

External Speaker

Specifications

System Quad-core, 2GHz
2G RAM
16G ROM, Up to EMMC 256G
Android 11.0 / Linux 5.10
Display Output Support External Screen Output
(10.1″ 1024*600p /12.1″1024*768p,
Capacitive Multi-touch Screen)
Communication 2.4GHz/5.8GHz WiFi, IEEE 802.11 a/b/
g/n/ac, Supports WiFi Shared Hotspot
BT2.1+EDR/3.0/4.1LE/4.2BLE
5G SA/NSA,4G/LTE (Free expansion)
& (Internal antenna)
GNSS (GPS/BDS/GLONASS),
Optional Centi-meter Level GNSS OEM Board,
Optional Interial Navigation Module
NFC(Optional)
External MIC (Optional)
External Speaker

I/O
Interface
RS-232*1/RS-232*1 & RS-485*1
CAN*2 (Supports J1939, CANopen, ISO15765)
CAN FD*2
DI*1, DO*2
USB 3.0 (Type-C) *1
HDMI*1
720p*4/1080p*2 AHD Camera
12V DC OUT*1
ADC*2, PPS*1
Gigabit Ethernet*1
Hardware Arithmetic
Rugged
Feature
Protection level: IP65
Vibration & Shock: MIL-STD-810
Road Vehicle Standard: ISO16750
Humidity 95%, Non-condensing
Operation Temperature: -30°C ~+70°C
Storage Temperature: -40°C ~+85°C

Power
Management
5-36V DC InputIgnition Control
Function button indicator light Power switch key*1, custom function button*1 Connector 26PIN connector*2
M12 X-code aviation plug*1
SMA connector*1
TNC connector*2
USB 2.0 interface*1

Mechanical
Spec
Dimension(W*H*D): 203.5*126.6*55.5mm
Weight: 0.69kg
Connector
Type
Standard Industry Waterproof Connector
TNC Female Connector*2
(GNSS/Centi-meter Level GNSS)
