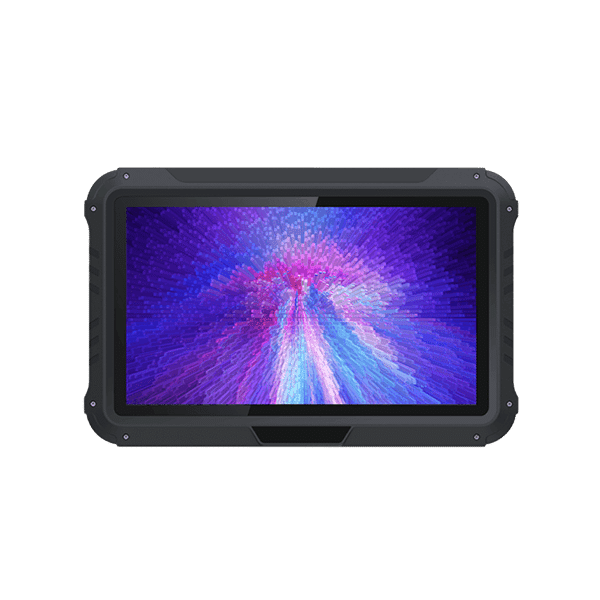

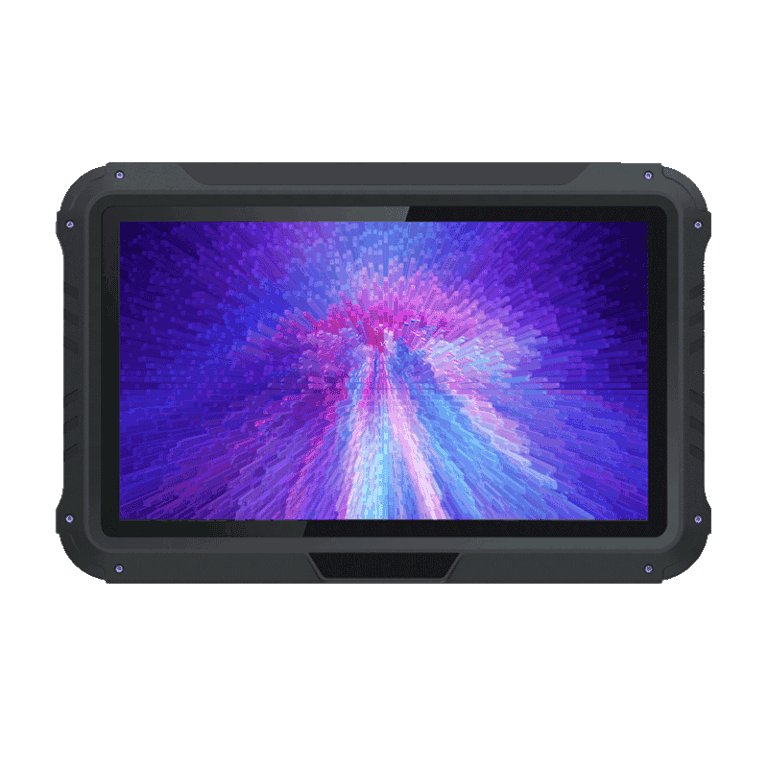

VCM S10-2

  • Optimized 4G Communication with Ultra-Link Technology
  • Enhanced Heat Dissipation with CoolSink Design
  • Secured Stability with 5-36V Wide Voltage Input
  • IP65 Protection
  • Support 250K/500K CANbus
  • 10.1″ High Brightness Display
  • Supports ISOBUS VT

VCM S10-2

  • Optimized 4G Communication with Ultra-Link Technology
  • Enhanced Heat Dissipation with CoolSink Design
  • Secured Stability with 5-36V Wide Voltage Input
  • IP65 Protection
  • Support 250K/500K CANbus
  • 10.1″ High Brightness Display
  • Supports ISOBUS VT

HIGH LIGHT

Can-Bus

1T Computing Power

Equipped with a 1T powerful processor

High Brightness Screen

CAN SocketCAN

Supports 250K/500K CAN and SocketCAN bus (J1939, CANopen, ISO15765)

Supports 4G/5G

Supports 4G/5G and ensures communication quality

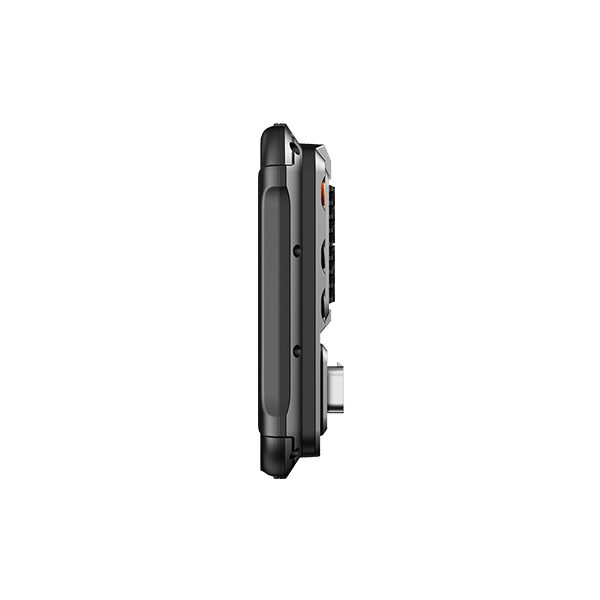

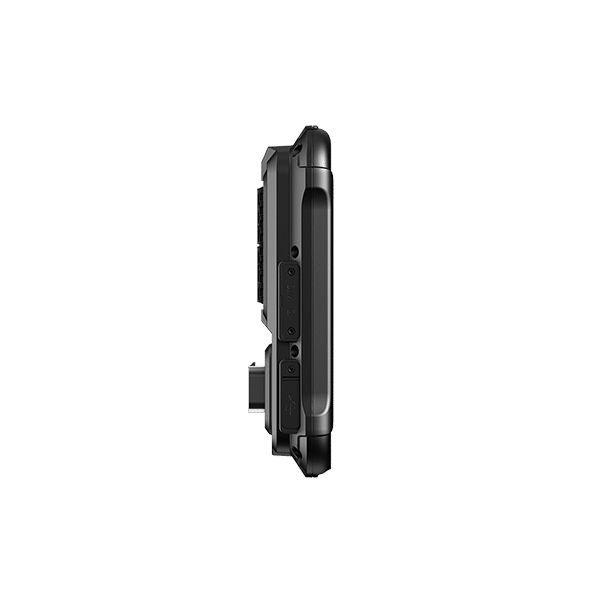

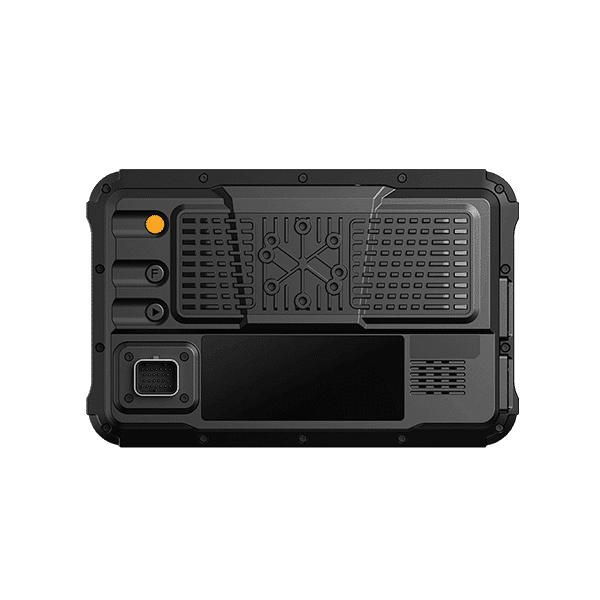

How The LINK 10 GEN2 LOOK LIKE

Introducing the CF-Comm Modular Bus Architecture, a cutting-edge solution designed to elevate your vehicle-mount computer experience to new heights. Engineered with unparalleled innovation, this revolutionary system boasts optimized 4G communication capabilities powered by Ultra-Link Technology, ensuring seamless connectivity and uninterrupted data transmission.

Specifications

system Quad-Core Cortex-A55 CPU (2.0GHz)
ARM G52 2EE GPU
OpenGL ES1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
High-Performance 2D Acceleration
1T Computing Power (0.8T NPU)Android 11.0

Linux Kernel 5.10
2GB RAM LPDDR4 (Up to 8GB)
16GB ROM EMMC (Up to 128GB)
show 10.1″ Capacitive 5-Point Touch Control Display
Brightness: 750 cd/m2
Resolution: 1024*600P
Communication Mic*1
Built-In Speaker*1
External Speakers
100Mbps Ethernet*1
G-Sensor*1
LTE 4G/5G Communication Module
WiFi 802.11 b/g/n, 2.4G
Bluetooth 4.2
MXT906B, UM980 & P20E Support (UM982 Optional)
Optional Radio Communication
(Harxon1018D Pin-Compatible)
 Power 5-36V Power Input
ACC Ignition Detection at Startup
Power Supply Voltage Detection
Overcurrent, Overvoltage, Undervoltage Protection
& Reverse Connection Prevention
Rugged
Feature
IP65 Protection Level
MIL-STD-810 Vibration Compliance
ISO16750 Road Vehicle Standard
Operating Temp: -30°C to +70°C, Humidity: 0%-90% RH
Storage Temp: -40°C to +85°C, Humidity: 30%-95% RH
Salt Spray Test: 48-Hour Endurance for Entire Device
I/O
Interface
Up to 4x CAN
2x RS232, 1x RS485
Up to 4x ADC_In Detection (12V Max Input)
Up to 5x DC_Output 12V
Up to 5x IO_Input
AHD Camera (1080Px2+1080Px4 or
720×4+1080×4 Max)
1x USB3.0
Connector 1x 26Pin Connector
4x GX12 Aviation Plug (Optional)
1x SMA Connector (4G/FM Radio, Optional)
2x TNC Connector (GNSS, Optional)
Mechanical
Spec
Dimensions (WxHxD): 281x181x42mm
Weight: 1.5kg
Buttons 2 Function Buttons + ON/OFF Button Button Installtion Easy Installation with RAM or Similar Mounts for
Vehicles, Farm Equipment & Machinery

See How We Save Time And Improve Efficiency

Connect to Vehicle Device
CF AVM 360° surround Image Tech

CF AVM 360° surround image technology addresses several critical challenges in various industries

DMS Driver Monitoring System

Integrating CFDEVICE’s Vehicle Computer with a Driver Monitoring System (DMS) offers a comprehensive solution to enhance safety, efficiency, and compliance in various industries reliant on fleet operations.

See How We Save Time And Improve Efficiency

CF AVM 360° surround image technology addresses several critical challenges in various industries

Integrating CFDEVICE’s Vehicle Computer with a Driver Monitoring System (DMS) offers a comprehensive solution to enhance safety, efficiency, and compliance in various industries reliant on fleet operations.

Solution Of CFDEVICE

Advanced Thermal Solutions

In industrial computing where reliability and durability are critical, onboard computers are the backbone of modern operations.

Learn More
Anti-Glare Display Solutions

Vehicle Mount Computers are crucial in enhancing efficiency and productivity in various industries such as logistics, warehousing, manufacturing, and transportation.

Learn More
Electromagnetic Compatibility (EMC) Solution

Electromagnetic Compatibility (EMC) is crucial in Vehicle Mount Computers due to their operational environment.

Learn More
Sunlight Readable Solution

In an era where technology seamlessly integrates into our daily tasks, Vehicle Mount Computers have become indispensable tools in various outdoor and industrial settings.

Learn More
Wide Input Voltage solution

In the current industrial and vehicle environments, the challenge and diversity of power input requirements are common issues.

Learn More
Wide Temperature Solution

Vehicle Mount Computers are often deployed in harsh and extreme environments, where they are subjected to both high and low temperatures.

Learn More

Solution Of CFDEVICE

Advanced Thermal Solutions

In industrial computing where reliability and durability are critical, onboard computers are the backbone of modern operations.

Learn More
Anti-Glare Display Solutions

Vehicle Mount Computers are crucial in enhancing efficiency and productivity in various industries such as logistics, warehousing, manufacturing, and transportation.

Learn More
Electromagnetic Compatibility (EMC) Solution

Electromagnetic Compatibility (EMC) is crucial in Vehicle Mount Computers due to their operational environment.

Learn More
Sunlight Readable Solution

In an era where technology seamlessly integrates into our daily tasks, Vehicle Mount Computers have become indispensable tools in various outdoor and industrial settings.

Learn More
Wide Input Voltage solution

In the current industrial and vehicle environments, the challenge and diversity of power input requirements are common issues.

Learn More
Wide Temperature Solution

Vehicle Mount Computers are often deployed in harsh and extreme environments, where they are subjected to both high and low temperatures.

Learn More

About Us

CFDEVICE specializes in developing rugged vehicle-mounted tablets and control boxes, equipped with Android/Linux dual systems, IP65/IP67 protection, 4G/5G, CAN/CAN FD/SocketCAN, serial communication, vehicle-mounted gigabit Ethernet, 536V/936V wide voltage input, and more. We also provide independent software products like CF AVM 360, CF DMS, CF ISOBUS VT, CF MDM, enhancing off-road vehicle sensing, connectivity, and offering comprehensive features such as equipment management, development guidance, OTA updates, and remote control.

2017
Year Founded
120
Countries and Regions
21 Million
Households
2,206
Authorized Patents⁵
Default Title
Default Title
Default Title
Default Title
Default Title
Default Title
Default Title
Default Title
Default Title
Default Title

About Us

Improve Your Efficiency

Subscribe to get the latest updates, Price list, or more.

Subscribe Our Chanal

About Us

Improve Your Efficiency

Subscribe to get the latest updates, Price list, or more.

Subscribe Our Chanal

Frequently Asked Questions

Find answers to the questions you may have

  • Ruggedized construction: CFDEVICE Link 10 is built to withstand harsh vehicle environments, including vibrations, extreme temperatures, and dust.
  • Sunlight-readable display: The device features a high-brightness display, ensuring visibility even in bright outdoor conditions.
  • GPS navigation: CFDEVICE Link 10 comes equipped with GPS functionality for accurate navigation and route optimization.
  • Wireless connectivity: It supports Wi-Fi, Bluetooth, and optional cellular connectivity for seamless communication and data transfer.
  • Customizable interfaces: The device offers various ports and interfaces for integration with vehicle systems and peripherals.
  • Enhanced security: CFDEVICE Link 10 features robust security features to protect sensitive data and ensure secure communication.

CFDEVICE Link 10 improves operational efficiency through real-time monitoring, optimized routing, streamlined communication, comprehensive fleet management, data analysis for insights, compliance support, integration with other systems, and enhanced driver safety.

  1. Transportation and Logistics: For fleet management, route optimization, tracking shipments, and managing delivery schedules.
  2. Public Safety and Emergency Services: In police cars, fire trucks, and ambulances for navigation, communication, incident management, and data collection.
  3. Field Services: For technicians, repair personnel, and inspectors to access work orders, documentation, and customer information while on-site.
  4. Construction and Engineering: For equipment monitoring, project management, and communication between job sites and headquarters.
  5. Utilities: In service vehicles for meter reading, infrastructure maintenance, and emergency response in sectors such as energy, water, and telecommunications.
  6. Agriculture: In farming equipment for precision agriculture, crop monitoring, and machinery control.
  7. Commercial Delivery and Distribution: For managing delivery routes, tracking inventory, and communicating with dispatchers and customers.
  8. Mining and Extraction: In vehicles used for exploration, extraction, and transportation of materials in mining and resource extraction operations.
  9. Public Transportation: In buses, trains, and other public transit vehicles for ticketing, scheduling, navigation, and passenger information systems.
  10. Military and Defense: In military vehicles and equipment for communication, navigation, surveillance, and mission-critical operations.
  1. Ruggedized Construction: CFDEVICE Link 10 is built with rugged materials and construction techniques to withstand physical shocks, vibrations, and impacts commonly experienced in vehicles.
  2. Sealed Enclosure: The device is housed in a sealed enclosure to protect internal components from dust, moisture, and other environmental contaminants.
  3. Wide Operating Temperature Range: CFDEVICE Link 10 is engineered to operate within a wide temperature range, ensuring reliable performance even in extreme hot or cold conditions.
  4. Shock and Vibration Resistance: The device is designed to withstand mechanical shocks and vibrations encountered during vehicle operation, preventing damage to internal components.
  5. Sunlight-Readable Display: CFDEVICE Link 10 features a high-brightness display with anti-glare coating, ensuring visibility even in bright outdoor conditions, such as direct sunlight.
  6. IP Rating: CFDEVICE Link 10 may be rated with an IP (Ingress Protection) rating, indicating its resistance to dust and water ingress. A higher IP rating signifies greater protection against environmental hazards.
  7. Compliance with Standards: The device may comply with industry standards for ruggedness, such as MIL-STD-810G for military-grade durability or SAE J1455 for automotive electronics.

vehicle-mounted computers can integrate with various vehicle systems to enhance functionality and communication. They can connect with the vehicle’s CAN bus for diagnostics and control, integrate with telematics systems for data transmission, utilize GPS for navigation, support wireless communication, interface with cameras and sensors, integrate with fleet management systems, support driver assistance systems, and connect with infotainment systems for passenger entertainment.

vehicle-mount computers are suitable for outdoor use. They are designed to withstand the challenges of outdoor environments, including exposure to sunlight, temperature fluctuations, moisture, dust, and mechanical vibrations. These computers are typically ruggedized and feature durable enclosures, sealed connectors, and components that can operate within wide temperature ranges. Additionally, they often come with high-brightness displays with anti-glare coatings to ensure visibility in bright outdoor conditions. Overall, vehicle-mount computers are well-suited for outdoor applications such as transportation, field services, construction, agriculture, and public safety, where reliability and durability are essential.

  1. Wi-Fi: Wi-Fi connectivity enables wireless communication with local networks, hotspots, and internet access points, allowing for data transfer, software updates, and remote management.
  2. Bluetooth: Bluetooth connectivity enables short-range wireless communication with peripherals such as barcode scanners, printers, smartphones, and other devices, facilitating data exchange and interaction.
  3. Cellular: Cellular connectivity, such as 4G LTE or 5G, enables mobile data communication over cellular networks, providing internet access, real-time tracking, and remote management capabilities even in areas without Wi-Fi coverage.
  4. Ethernet: Ethernet ports allow for wired network connectivity, enabling high-speed data transfer and reliable communication with local networks and backend servers.
  5. CAN Bus: CAN Bus interfaces enable communication with the vehicle’s Controller Area Network (CAN) bus system, providing access to vehicle diagnostics, telemetry data, and control over vehicle functions.
  6. USB: USB ports allow for connection to external peripherals such as storage devices, cameras, sensors, and input devices for data transfer, expansion, and integration.
  7. Serial Ports: Serial ports, such as RS-232 or RS-485, enable communication with legacy devices and industrial equipment, providing connectivity for monitoring, control, and data exchange.
  8. GPS: Built-in GPS receivers provide location-based services, navigation, and tracking capabilities, allowing for accurate positioning, route optimization, and real-time location updates.
  9. RFID: RFID readers enable contactless identification and tracking of assets, inventory, and personnel, facilitating data capture and automation in logistics, transportation, and inventory management applications.
  10. NFC: Near Field Communication (NFC) enables short-range wireless communication for tasks such as mobile payments, access control, and data exchange with compatible devices.

Yes, many vehicle-mount computer manufacturers offer customization options to tailor the devices to specific application needs. This may include modifications to hardware configurations, software features, mounting options, and peripheral compatibility to meet the unique requirements of different industries and use cases.
